I'm working on a pantry app. I want to use recipes compatible with Umai, but connected with a record of what ingredients are in the house. I have a more or less functional version that I've started using in my home. It's rough around the edges and I keep thinking of new functionality that would improve its usability. But that's a key part of why I've built it the way I have - the idea of enabling user control over both their data and the interfaces used to interact with it. Rather than simply sharing my current version, this blog will break it down and built it back up, step by step.
Eventually, this blog and app will include:
My starting point is compatibility with the recipe app Umai. It uses schema.org Recipe objects. As presented by Practical Solid, it's already possible to simply view and add to a recipe in the PodOS browser. Because we'll be integrating with pantry data, we want to go one step further and create a custom interface.
We're going to start with PodOS elements. We create a plain HTML file, in this case hosted on a Solid pod, using a set of web components to access the recipe data. Additionally, we'll autoload some additional experimental web components that provide rough editing capabilities and allow the use of prefixes.
Starting from the recipe itself, pos-picture is used to fetch
a known picture (here using schema:image) and a name is
accessed using property="schema:name". The intention is for
this UI data binding to work similar to
Mavo.
<pos-resource
uri="https://jg10.solidcommunity.net/pantry/blog/01/rosti.ttl#it"
prefix="schema: https://schema.org/"
>
<pos-picture></pos-picture>
<h2>
<my-editable-literal property="schema:name">
</my-editable-literal>
</h2>
</pos-resource>
Ingredients and instructions are slightly more complex. An experimental
list web component is used that iterates through instructions ordered by
their schema:position and displays each item using a
template.
<my-list
property="schema:recipeInstructions"
sort="schema:position"
>
<template name="item">
<li>
<my-editable-literal property="schema:text">
</my-editable-literal>
</li>
</template>
</my-list>
In part 1, the app only opens a single resource. We want to be able to open multiple recipes but also different types of objects. To support an open world assumption, we want to be able to handle unknown types too.
We add a navigation bar, and use
pos-type-router
as a generic component to display arbitrary resources.
Client side routing is implemented using the PodOS
pos-router
component. We listen for a pod-os:route-changed event after
navigating to e.g.,
https://jg10.solidcommunity.net/pantry/blog/02/, and update
the uri on pos-resource, which causes the new uri to load -
in this case showing the contents of the container.
Rather than adding complexity within the app, we can split out the recipe
as a separate "pane". We use an experimental conditional rendering
component to display the recipe pane for
schema:Recipe objects, and display
pos-type-router otherwise.
<show-if if-else>
<template if-typeof="schema:Recipe" src="recipe.html">
</template>
<template else>
<pos-type-router></pos-type-router>
</template>
</show-if>
The recipe pane is dynamically loaded from recipe.html. It's the same HTML code that we used in part 1 - the file is a HTML fragment using web components that receive access to a PodOS instance and a resource via events. I've made a first attempt at a spec for PodOS-compatible panes.
An advantage of having a separate recipe pane is that we can reuse it in
other contexts. This potentially includes the pod browser itself, in the
form of a dynamically registered pane. Using a proof of concept
registered-pane and a demo type registry, we have:
As specified by the same draft
spec, panes and external apps are specified as part of a type registration.
The browser app uses an experimental
registered-pane component to load the pane, and
open-with component to provide a menu that allows the user to
open the recipe in
Umai Viewer . The browser app itself doesn't know about recipes, but the type
registry does, which allows it to show our custom pane.
pantry: namespace
schema:name
instead of
rdfs:label
In this part, we're going to add the features:
To do this, we need to go beyond Umai's data model. We'll reuse other
existing vocabularies where we can. Where new terms are needed, we'll use
the
pantry: prefix, mapped to
https://jg10.solidcommunity.net/pantry/terms.ttl#. The
general philosophy here is to not allow missing terms to get in the way of
experimentation - minting new terms is trivially easy. If a set of terms
turns out to be of high value, they can then be formally documented, and
at that point a
permanent home can be
found. In the mean time, interoperability will still need to be
considered. We'll return to this later.
A grocery will be a
schema:Product. We'll define a new predicate for approximate
quantity of a grocery and named individuals
None, Low, Some, Many
.
:1638629734460861 a schema:Product;
schema:name "Potatoes";
pantry:approxQuantity pantry:None.
We'll store all products in a pantry document. Dereferencing the pantry document will return all the known products in one go. This is primarily a performance based document box. We want to be able to load information about all groceries in a single request. When we load or navigate to the pantry document, we want to know that's what we're looking at, so we give it a class. There's no predicate linking the pantry document to individual products because it's just a view of the underlying graph. One day Solid might allow such a view to be dynamically generated from a hybrid graph.
<> a pantry:Pantry.
We'll create new panes for a pantry:Pantry and
schema:Product. We'll keep them simple and add more features
later. The same panes can be used in the data browser, so we add them in
the registry too.
The pantry pane offers the user the option to add a new grocery just by giving it a name, which can also be edited later. Creating the grocery involves adding several triples to a specific document, so we do this with an experimental wrapper around a form. The pantry document uri is hard-coded here. This works fine for a user creating a custom interface, but we'll need to generalise this later for anybody else to use the app.
<form
typeof="schema:Product"
doc="https://jg10.solidcommunity.net/pantry/blog/03/pantry.ttl"
>
<input property="schema:name" />
<input type="submit" value="New" />
</form>
The product pane uses an experimental classifier web component inspired by
SolidOS ui:Classifier. The web component dereferences
pantry:ProductApproxQuantity and offers the user to select
from instances of that class.
<my-classifier
label="Quantity:"
property="pantry:approxQuantity"
category="pantry:ProductApproxQuantity"
></my-classifier>
The product pane loads recipes that use that grocery. To do this, we need to link groceries and recipes.
It's a long standing issue that
schema:recipeIngredient does not support structured
data, which is perhaps also understandable given the need to cover such cases
as "1kg/ 2 lb potatoes (skin on weight) ( - Aus: Sebago (dirt brushed),
US: Yukon Gold, Russet, UK: Maris Piper, King Edwards (Note 1))". The
solution we'll pick is to use
schema:supply. We can use the same label, but be specific about the grocery item and
even specify the order of ingredients using schema:position.
:1741337498953
schem:item <pantry.ttl#1638629734460861>;
schem:name
"1kg/ 2 lb potatoes (skin on weight) ( - Aus: Sebago (dirt brushed), US: Yukon Gold, Russet, UK: Maris Piper, King Edwards (Note 1))";
schem:position "1".
But Umai (and most websites with structured recipe data) use
schema:recipeIngredient and not schema:supply.
What we're going to do is use both predicates and keep them in sync. We're
going to start by doing it the low tech way - we're going to show both
sets of data and the user will visually ensure that they match. A second
solution would be to sync them using
CRDTs, as
already used by Umai - a change in one of the predicates would be
accompanied by a change in the other. We'll explore a third solution
later.
With our low tech solution, the user autocompletes ingredients from the groceries defined in the pantry document. In this example, I don't actually care what type of potatoes are needed - and if I do I can return to the recipe to check. Similarly, I'm opting to substitute normal butter instead of ghee. I haven't annotated vegetable oil, salt or pepper because I always have them in the house. I've progressively enhanced the text descriptions with structured data only for parts I care about, and I'm using a pantry defined at the granularity that I want as the point of truth rather than one provided by others.
Because the pantry document provides information about all groceries at once, the recipe pane can load that document and show that I have no potatoes and lots of butter. It also provides links to those groceries to be able to take more actions that involve them. If I decide later that I do sometimes want to buy and use ghee instead of butter, I could also add it as a grocery, link it to the recipe here and see the availability of both the preferred ingredient and its potential substitute.
Autocomplete is implemented with an experimental component with a similar
interface to the classifier. All loaded instances of
schema:Product are suggested. If category is
missing, then all known objects of schema:item are used
instead.
<autocomplete-input
property="schema:item"
category="schema:Product"
></autocomplete-input>
How is this data used in the product pane? By default, the
schema:supply statements would be saved in the same document
as the recipe. We override this to instead save them in a supplies
document. This acts as an index of recipes by ingredient to avoid needing
to load all recipes. An alternative would be to use a local first approach
(like Umai) and have all recipes at hand. The two approaches could
co-exist as long as the index is updated when recipe documents are
modified.
<my-list
property="schema:supply"
sort="schema:position"
add-new
doc="https://jg10.solidcommunity.net/pantry/blog/03/supplies.ttl"
>
Returning to the product pane - providing a list of recipes that use an ingredient involves loading the supplies document, iterating through the HowToSupply objects that use the ingredient, and loading the name of the corresponding recipe.
On the whole, this style of development is strongly tied to navigating a knowledge graph, with deliberate dereferencing of documents at key locations in the rendering process. It's unlikely to achieve interoperable serendipity, but we can still explicitly communicate the data structures that we use to enable others to interoperate.
If I'm working in a particular domain, e.g., food, and I want to interoperate with other apps, e.g., Umai, I might ask: what data structures can I use? To begin with, I might want to be more precise
| Umai v0.1.8 | Pantry app part 3 | |
|---|---|---|
| Works with recipes | x | x |
| Works with records of pantry contents | x | Works with shopping lists |
Within apps that work with recipes, we can talk about different classes and shapes.
| Umai v0.1.8 | Pantry app part 3 | |
|---|---|---|
| Works with schema:Recipe | x | x |
| Works with Umai v0.1.8 data shape | x | x |
| Works with schema:supply | x | |
| Works with fo:Recipe |
Similar to how web browser support tables work for https://caniuse.com, developer and data power-users gradually get the feeling for which data structures are supported by the most apps or by the apps one wants to use. Efficiently organising app compatibility data is something we'll have to come back to...
So far we've covered the first two of the four planned ways of using pantry data with recipes:
The latter are arguably more important as they allow a quick scan across recipes and ingredients. We'll also define locations of groceries to help scan them in chunks.
We introduce two new subclasses pantry:Staple and
pantry:Perishable. Staples are usually available. Perishables
need to be used when they are available. Groceries will be linked to a
location with a new predicate pantry:contains. We adjust the
product pane and pantry pane, and add new location and cookbook panes.
The changes to the product pane are minimal. We'll allow for editing of the location of the product with a new experimental web component that also allows specifying a link and a label.
<my-editable-link rev="pantry:contains"></my-editable-link>

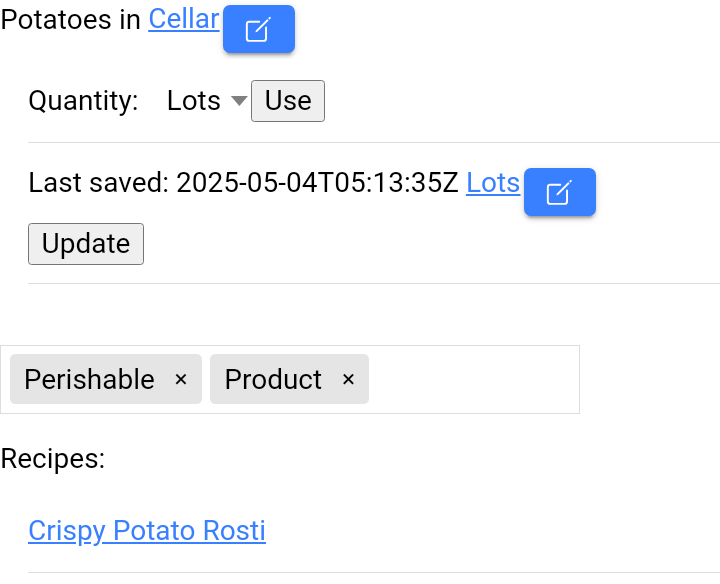

For potatoes, providing a new link and label for location yields:
:Cellar
rdfs:label "Cellar";
pantry:contains :1638629734460861 .
The statements are by default inserted in the same document as the subject (potatoes), treating location information as part of the pantry itself, which suits us fine for now.
We'll also add an autocomplete-input component to select
types. We haven't defined a category to use, so it will just autocomplete
all known types. The first time we use it, it won't know about
pantry:Perishable, but we can just paste the URI in anyway -
the component is designed with an open world assumption in mind. The
autocomplete is not the nicest UX to specify a type but it's easy to add
to the UI and functional for a fairly infrequent task. Potatoes are marked
as perishable, and butter as a staple. The latter doesn't need to be
marked as perishable - it consistently gets used before its best-before
date.
The pantry pane gets a major upgrade. It now consists of six lists using
my-list, show-if conditional rendering, and
other display web components. We also add a reusable
product-row.html HTML fragment.
This screenshot shows that we've got (lots of) potatoes that need to be
used. Following the link will show the product pane with the list of
recipes. We usually have butter in the house but don't at the moment. An
inline my-classifier is provided in case the data is out of
date. We have links to each location (to be shown in location pane), and
we still have the full list of defined groceries in the pantry. Obviously
minimal effort has gone into styling - emphasis is still on prototyping a
MVP at this stage.
We're going to model locations with the SOSA (Sensor, Observation, Sample,
and Actuator) ontology as
sosa:FeatureOfInterest. At some point we might want to use a subclass, but given the bespoke,
experimental nature of the app, for the time being we want to reduce
friction to getting started. Treating a location as a feature of interest
means that we'll be able to define observable properties and record
changes in those properties over time. This provides a point of
integration with potential digital home apps that aim to provide a digital
twin of the home. We'll be able to talk about not just what is in the
fridge, but also its electricity usage, maintenance and entire lifecycle
as a consumer good. In contrast to ingredients, which are ephemeral, a
fridge or cupboard is a continuing feature of a home. If we replace the
fridge, we'd create a new sosa:FeatureOfInterest and move
relevant groceries into it.
For the time being, the main effect of this decision is that we register
the location pane with the sosa:FeatureOfInterest class and
keep in mind that its ultimate scope may be much broader than simply
listing groceries.
The location pane itself is relatively straight-forward, iterating through
the pantry:contains objects and displaying them with the
product-row.html.
As a first pass, the cookbook view will simply show whether the ingredients for each recipe are available. We'll split out the staples because they will appear frequently and are usually assumed to be in the house.
Implementation is again with the list and conditional rendering
components, and reusing the product-row.html fragment. One
difficulty arises - the panes need to know about and load the supplies
document and pantry document in addition to the recipe (names) themselves.
For the time being, these are hardcoded in the pane itself.
As an implementation note, Umai cookbooks are
currently
containers containing documents with schema:Recipe objects -
they do not have their own class. Before dereferencing the recipe
documents, the cookbook can be identified through its type index
registration. This is supported in the app using an
n3 resource path.
Public recipe lists are schema:ItemList. The app supports
both and the approach could be revisited in collaboration with Umai.
<template
else
if-n3path="^solid:instanceContainer!solid:forClass"
eq-value="schema:Recipe"
src="cookbook.html"
></template>
<template
else
if-typeof="schema:ItemList"
src="cookbook.html"
></template>
schema:ItemList. The list can also be opened with
Umai viewer.
Coming soon...
Comments welcome on Mastodon, GitHub or the Solid Community Forum .
